Single Girder E.O.T Crane
The Single Girder E.O.T. (Electrically Operated Travel) Crane is MMTE's most versatile and widely installed overhead crane — designed for light to medium-duty material handling in factories, warehouses, and manufacturing plants. Built on a single bridge girder with end carriages running on runway rails, it delivers smooth, reliable lifting at an economical footprint. Every unit is custom-fabricated at our 10,800 sq.m. Gujarat facility and fitted with MMTE's in-house manufactured gear box for extended life and minimal maintenance.
Key Specifications
| Parameter | Details |
|---|---|
| Type | Single Girder Electrically Operated Travel |
| Lifting Capacity | Up to 15 Tonnes (custom on request) |
| Span | Up to 35 metres |
| Lift Height | As per plant requirement |
| Travel | Long travel + Cross travel (motorised) |
| Control | Pendant push-button / Wireless remote |
| Duty Class | M3 to M5 (light to medium duty) |
| Power Supply | 415V, 3-Phase, 50Hz |
| Gear Box | STD Gear box of reputed company |
| Compliance | IS:3177 / IS:807 |
Technical Advantages
- Gear Box — MMTE-manufactured helical gear box with hardened, profile-ground gears for silent running, longer life, and no misalignment
- Compact & Economical — Single girder design reduces dead weight and structural load on the building, lowering installation cost
- Smooth Operation — Anti-friction bearings and precision-machined components ensure jerk-free travel and hoisting
- Custom Span & Capacity — Engineered to exact plant dimensions — no standard compromise
- Low Headroom Design — Maximises available hook height even in buildings with limited clearance
- Easy Maintenance — All components accessible for inspection; genuine spare parts available from MMTE directly

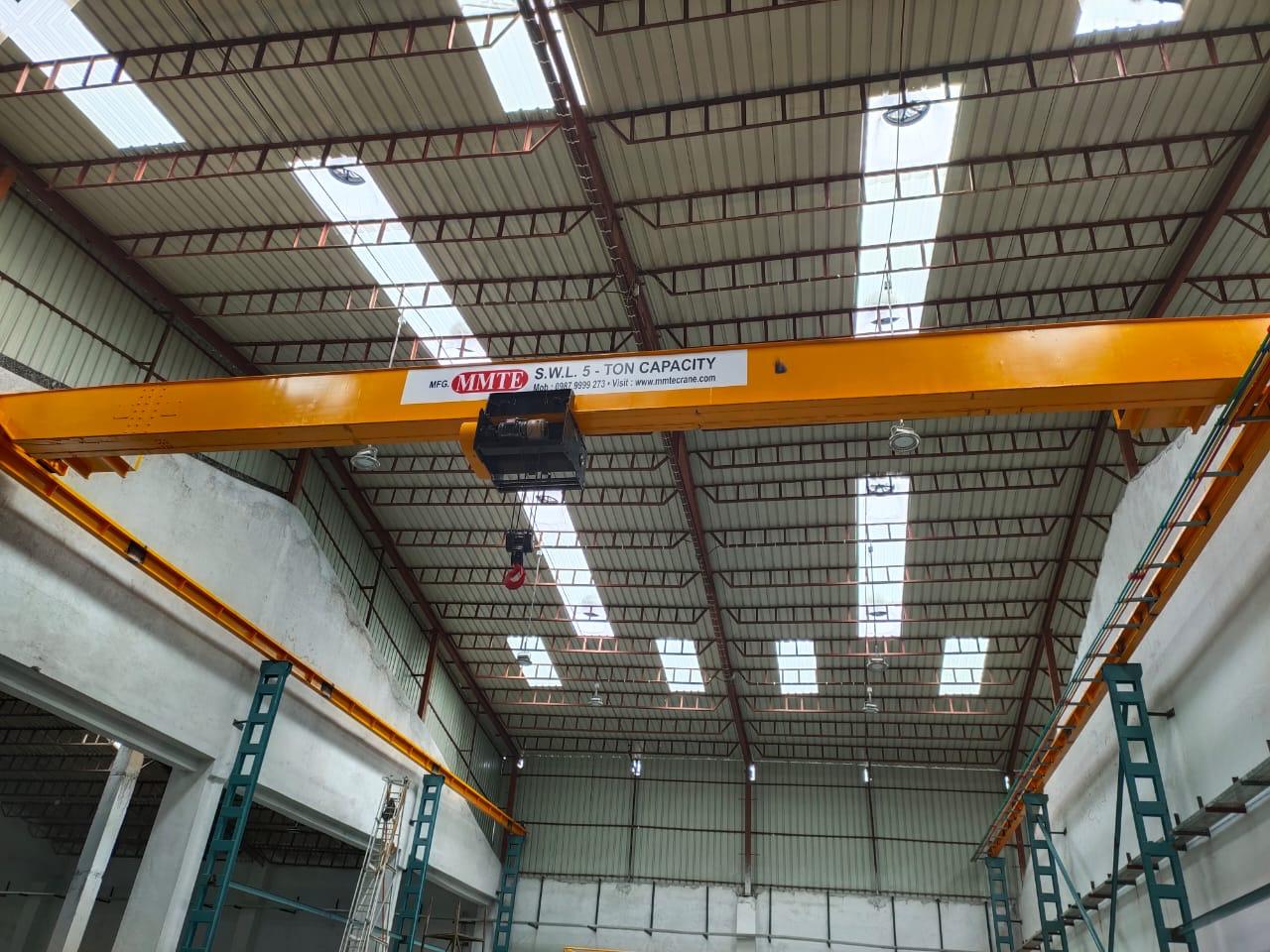

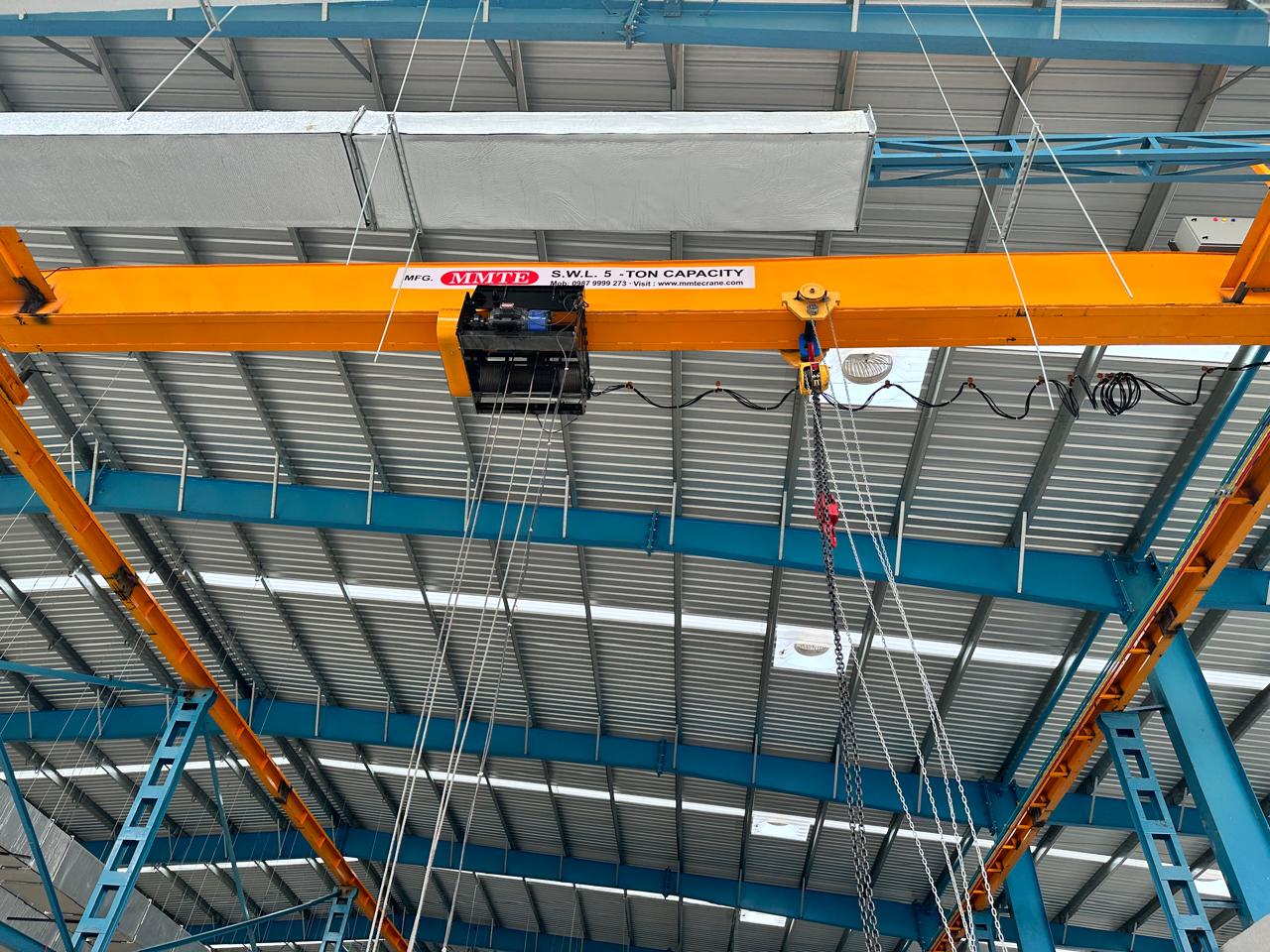

More Product Images
