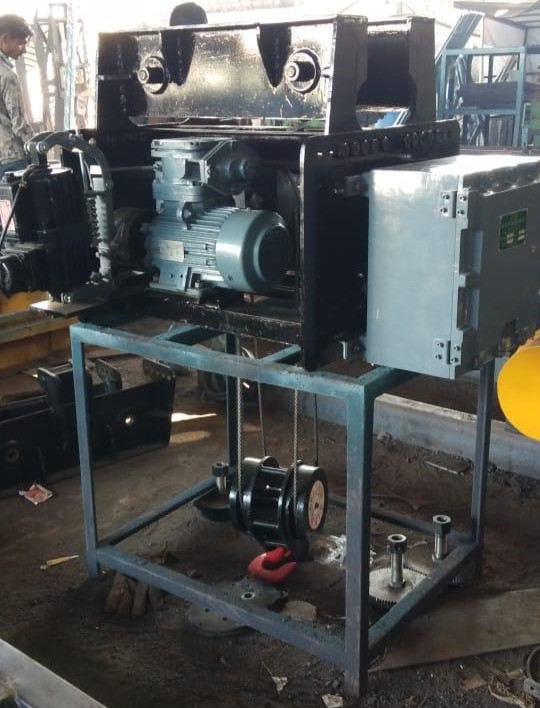

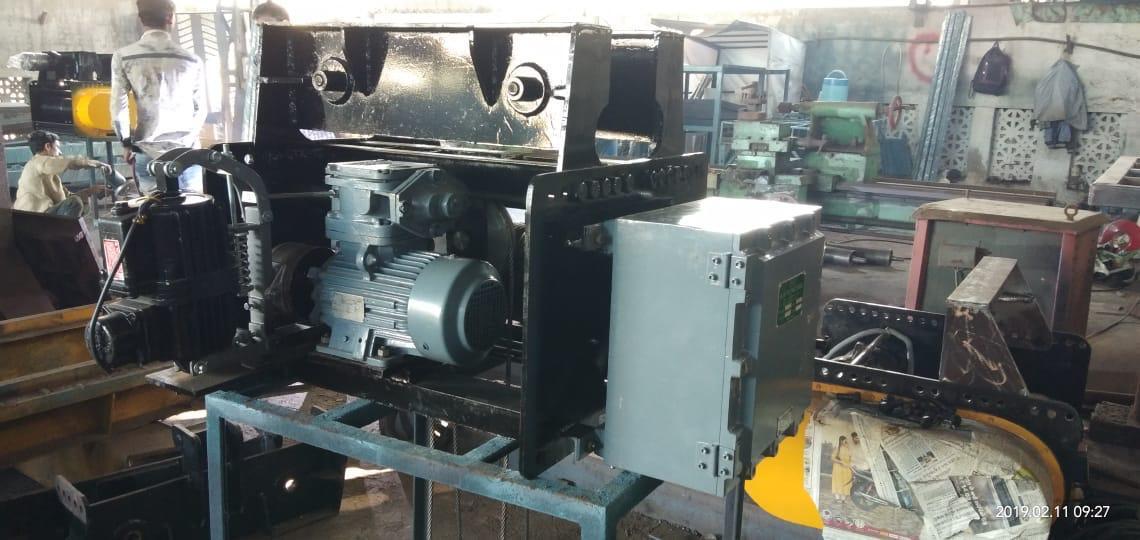

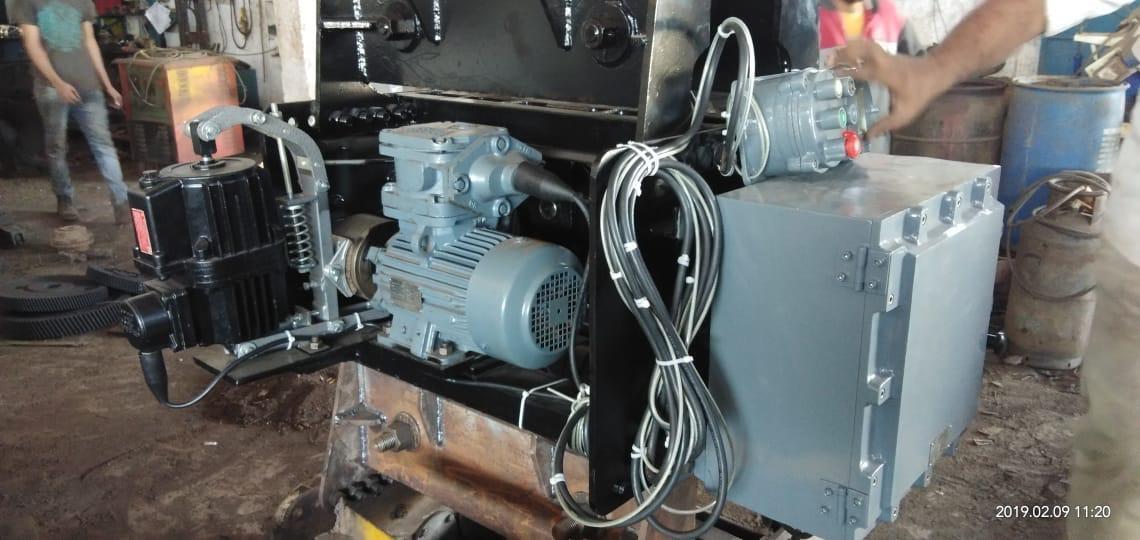

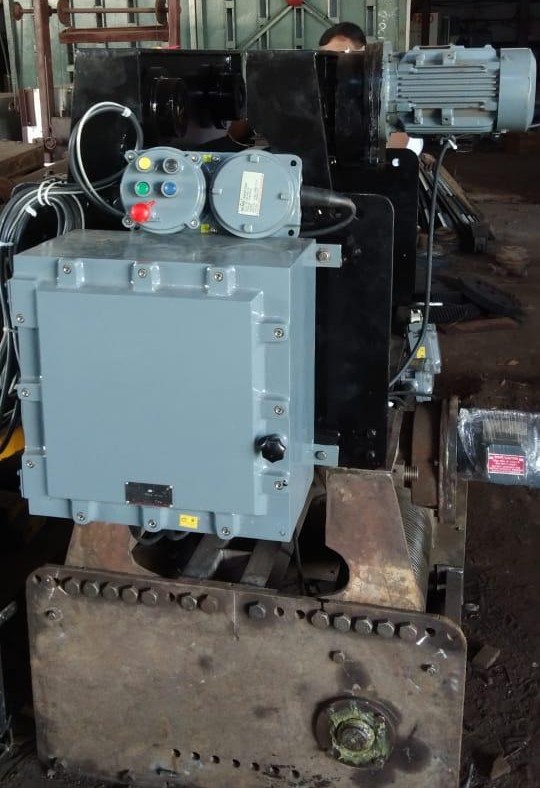

Flame Proof Hoist

The Flame Proof Hoist is a specially engineered wire rope hoist designed for use in hazardous and explosive environments. All electrical components — motors, brakes, control panels, and push-button stations — are fully flame-proof (FLP) certified as per IS/IEC standards, ensuring zero risk of ignition in areas where flammable gases, vapours, or combustible dust are present.

Key Specifications

Parameter	Details
Capacity Range	0.5 MT to 20 MT
Lift Height	6M standard; customised available
Motor Protection	Flame Proof (FLP) as per IS 2148 / IEC 60079
Electrical Classification	Zone 1 / Zone 2 (Gas Group IIA, IIB, IIC)
Control	FLP Pendant / FLP Wireless Remote
Travel	Motorised or Hand-Geared type
Power Supply	415V / 50Hz / 3-Phase, FLP Switchgear
Certification	CMRS / PESO approved components

Technical Advantages

• IS/IEC Certified FLP Enclosures — All electrical components certified to IS 2148 / IEC 60079 flame-proof standards, fully safe for Zone 1 and Zone 2 hazardous areas
• Sealed Motor & Brake — Specially sealed flame-proof motor and brake assembly prevents ignition of surrounding explosive gases or combustible dust
• In-House Gear Box — MMTE-fabricated helical gear box ensures complete component traceability, quality assurance, and easy after-sales service
• CMRS / PESO Compliance — Available with approved FLP fittings and certification for full regulatory compliance in petroleum, chemical, and mining sectors
• FLP Control Station — Dedicated flame-proof pendant and control transformer ensures operator safety in hazardous zones
• Robust Housing — Stress-relieved MS fabricated gear housing with anti-friction bearings for reliable, long-life operation in harsh environments

Applications

• Petroleum refineries
• Oil terminals
• Chemical and pharmaceutical plants
• Paint manufacturing facilities
• Explosives and ammunition depots
