Goods Lift

EOT Cranes Manufacturer in Cairo

Goods Lift

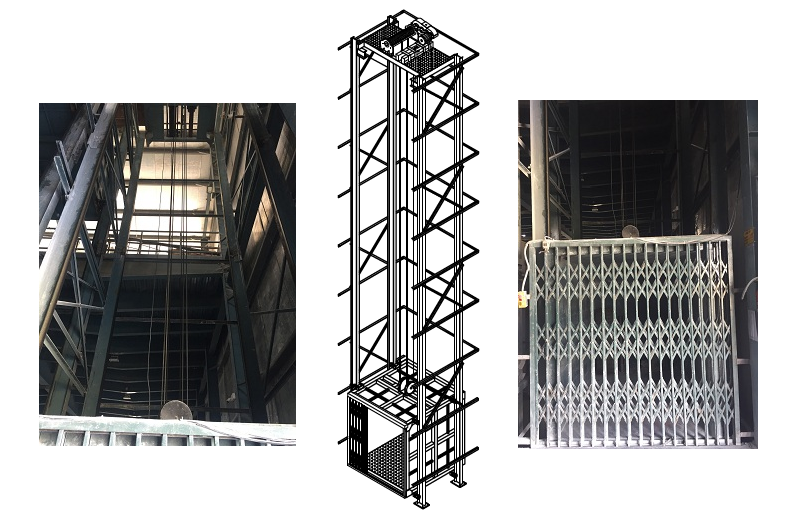

We are engaged in presenting a wide array of freight elevators that help in transfering of loads from one level to another. These goods elevators are extebsively used in factories and storage facilities for the movement of good between floors, these elevators are known for their high speed and smooth operations. Designed as per the set industry standards.

LOAD: 500kG, 1,000KG AND 1,500kG. 2000kKG, 3000kG, 5000kG,10000kG.
CAR: GONSTRUCTED FROM MILD STEEL SHEETING, ISMG, SQUARE PIPE FINISHED IN A SMOKE GREY ENAMEL WITH HEAVY DUTY GHEQUERED PLATE GOVERED FLOOR ON BASE FRAME.
LANDING ENTRANCES: CAR ENTRANCE PROTECTION : A COLLAPSIBLE GATE IS FITTED TO THE LIFT CAR ENTRANCE (S) AS STANDARD.
MOUNTING: THE GOODS LIFT IS SUPPLIED IN A STRUCTURE SUPPORTED FRAME. A SQLID BASE AND SUPPORT AT EACH FLOOR IS ALL THAT IS NEEDED FROM YOUR BUILDING.
FLOORS SERVED: UP TO 5 STOPS OR CUSTOMER REQUIREMENT.
SPEED: 2.5 MTR /MIN TO 10MTR /MIN.
TRAVEL: UP TO 21 METRES OF TRAVEL.
ENTRY CHOICE: UP TO TWO ENTRANGES CAN BE FITTED ON EAGH FLOOR. SINGLE OR THROUGH GAR AVAILABLE.
CONTROL: FULLY AUTOMATIC PUSH BUTTON CONTROL WITH GALL AND DESPATGH FACILITIES AT EACH LANDING ENTRANCE. ALL CONTROL BUTTON PROVIDE OUT SIDE OF THE GAGE, WE ARE NOT PROVIDE ANY CONTROL SWITCH IN THE CAGE.
INDICATORS ON PANNEL: CAR GATE OPEN, FLOOR GATE OPEN, EMERGENCY SWITCH.
EFFICIENT AND QUIET IN OPERATION.
ELECTRIC SUPPLY: . 380/415 VoLt - SOHZ - 3 PHASE.24 VOLT CONTROL VOLTAGE.
SAFETY: ONCE INSTALLED, TESTED, COMMISSIONED AND ALL THE BUILDING WORK IS COMPLETE, THE GOODS LIFT WILL COMPLY WITH THE ESSENTIAL SAFETY.
HOIST: WE SUPPLY SINGLE DRUM HOIST WITH SOQ0MM GAGE, IF CAR SIZE IS MORE THAN 3500 WE SUGGEST TWIN DRUM HOIST FOR BALANCING LOAD.
